Product Overview
The mAT-80 antenna tuner family is our latest designed series of tuners, soon to be released. They feature powerful performance and a rich set of interfaces, capable of meeting nearly all your expectations for an antenna tuner.

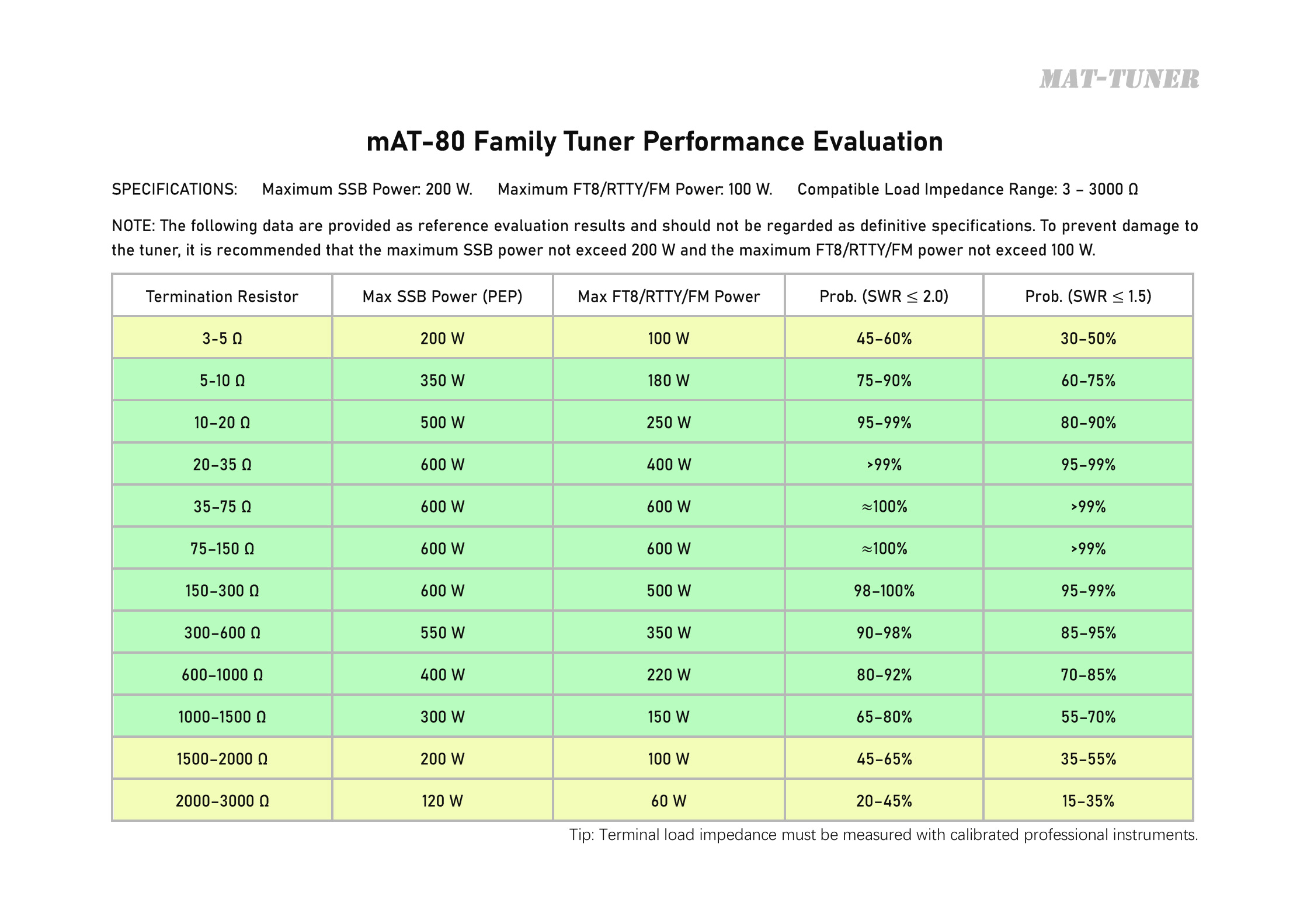

Technical Specifications
| Frequency Range | 1.8 - 54 MHz |
|---|---|
| Maximum RF Power(SSB) | 200 W |
| Maximum RF Power(FT8/RTTY/FM) | 100 W |
| Supported antenna impedance | 3 - 3000 Ω |
| Tuning Time | < 5 seconds (typical) |
| Version | Remote Universal, YAESU Version, ICOM Version |
| Antenna Compatibility | Long-wire, dipole, vertical antennas |
| Power Supply | 12-14 V DC |
The following models will be released successively:
mAT-80M
Automatic antenna tuner for modern ICOM transceivers.
Provides seamless operation with compatible ICOM radios and reliable tuning with most wire antennas.
No additional interface or configuration is required.
mAT-80Y
Automatic antenna tuner for modern YAESU transceivers.
Supports automatic frequency tracking for fast and convenient operation.
Works reliably with most wire antennas.
Note: Fully compatible with current YAESU transceivers. Compatibility with future YAESU models cannot be guaranteed.
mAT-80R
Remote-powered universal antenna tuner with a built-in Bias-T.
A single coaxial cable carries both RF and DC power, eliminating separate power and control cables for a cleaner installation.
Supports both coax-fed antennas and long-wire antennas.
A Bias-T is required for operation. The tuner includes a built-in Bias-T.
You may use our optional mAT-4117 Bias-T or any compatible Bias-T that meets the required specifications.
